Computer Controlled PEM Fuel Cell
Cód. ES5C
The unit has been designed to give students a good understanding of fuel cells technology. This unit demonstrates a PEM Fuel Cell, generating electrical power from hydrogen.
Mais Detalhes do Produto


The “EC5C” unit is supplied with a stack of proton exchange membrane fuel cell (PEM) with a rated power of 100W. The stack is  composed of 24 cells with the shape of channelled plates that allow the air flow through the membrane. The membrane facilitates the hydrogen flow, generating the electrons release. There are separating plates which conduct electricity, allowing thus such electrons flow, between each pair of cells.
Cells are self-humidifying and do not require any type of external humidification. The stack has an integrated fan able to provide the required air for the good operation and maintenance of the appropriate temperature.
Hydrogen storage represents one of the essential points regarding the hydrogen economy. For that purpose, a bottle of metal hydride (300NL) is included. Thanks to the absorption of the hydrogen inside, hydrogen is stored in a safe and certified way. Since the discharge pressure of the metal hydride bottle is 15-20 bar, the EC5C unit also includes two pressure regulators; one of them is prepared to be installed in the H  bottle in order to regulate the outlet pressure at 5-50 bar; the other is placed at the outlet of the metal hydride bottle in  2 order to regulate the inlet pressure to the stack in a range from 0.50 to 0.55 bar.
The unit also includes two solenoid valves. One of them is located before the stack. It controls the hydrogen inlet and when the unit is switched off, the valve is closed to avoid any possible hydrogen leakage. The other valve is placed at the stack outlet. It purges the excess of water and hydrogen towards the exterior for a correct operation.
The unit has a load regulation system. It enables the study of the generated electrical energy, the representation of the characteristic operation curves and their comparison with the theoretical curves. It includes a variable power rheostat, which enables to vary the generated power.
The whole electrical circuit of the stack is protected by a short circuit unit in case of an over current (12A) and low voltage shut down (12V).It includes a hydrogen leak detector with a detection range from 0 to 2% Vol. and from 0 to 100% LFL respectively.
This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control and Data Acquisition Software Packages, for controlling the process and all parameters involved in the process.



Bench-top unit.
Anodized aluminium structure and panels in painted steel.
Main metallic elements in stainless steel.

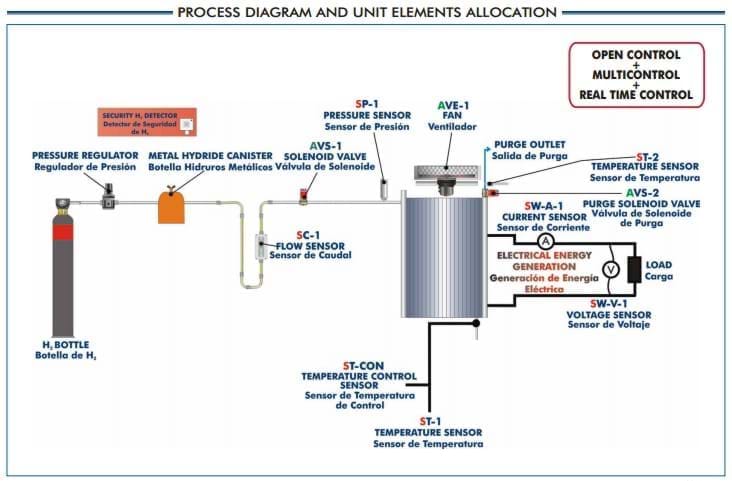

Diagram in the front panel with similar distribution to the elements in the real unit.
Fuel cell stack with 24 cells, and a rated power of 100W. Cells are
self-humidifying and do not require any type of external humidification.
Integrated fan in the stack.
Solenoid valve to supply H .2
Bottle of metal hydride for the storage of H  of 300NL. of capacity. 2
Pressure regulator of the metal hydride. Variable inlet adjustable to the
hydride and outlet range from 0.50 to 0.55 bar.
Pressure regulator of the H  bottle. Inlet at 200 bar and outlet at 5-50 bar. 2
Suitable tubes and hoses for their use with H  with a high safety factor: up to 210 bar. 2
Purge solenoid valve.
Load module: Rheostat: 33R  315W.
Hydrogen leakage detector (4-20 mA; IP65), and software warning.
Failure protection with solenoid valve at the stack inlet.
Over current shut down.
Low voltage shut down.
Over temperature shut down in the stack.
Flow sensor to measure the inlet H  flow to the stack.  2
Control temperature sensor placed between two bipolar plates of the cell.
Temperature sensor for the purge flow.
Pressure sensor to measure the H  at the stack inlet. Range: 0-1 bar. 2
Current, voltage and power sensors.
The complete unit includes as well:
Advanced Real Time SCADA.
Open Control + Multicontrol + Real Time Control.
Own Control Software based on Labview.
National Instruments Data Acquisition board (250 KS/s (kilo samples per second)).
Calibration exercises included.
Students multipost (an entire class) by using a projector.
Ready for doing applied research, real industrial simulation, training courses possibilities, etc.
Unit is totally safe (Mechanical, Electronic/Electrical and Software safety devices included).
Results calculation and analysis software (CAL).
Several future expansions, as ESN. EDIBON Scada-Net System (many students working
simultaneously), and more.
Designed and manufactured under several quality standards
